Sand & Trench Rescue Panels
Really Deep Sand & Trench Panels
The Ultimate Choice
High-Strength & Easy To Install
The ultra-high strength, lightweight design, and stackable configuration of Really Deep Trench & Sand Panels make installation significantly quicker compared to the cumbersome process associated with traditional trench shoring.
Versatile
The versatility of Really Deep Panels extends beyond the limitations of traditional methods, simplifying construction around corners, T-trenches, and L-trenches.
Reduce the Need for Strong Backs
By opting for Really Deep Panels, rescue workers reduce the need for strong backs and can forego the challenges associated with the assembly and deployment of traditional trench shoring equipment.
Prevent Seepage for Added Stability
The closed sheeting system of these panels significantly reduces seepage of wet or granulated soil types, offering a level of protection that is near impossible with open sheeting alternatives
Really Deep Sand & Trench Panels
Similar, but Different
Really Deep Sand & Trench Panels are an ultra-high strength, expandable, stackable, closed sheeting system that reduces cofferdam/trench wall installation time, while increasing safety for rescue workers and the victims themselves.
Both the Sand and Trench Rescue panels have similar spacing and engineering attributes. The Sand Panel is engineered with a 1.5 safety factor to 15 feet of depth. It is lighter and of a slightly different design than the Trench Panel. Learn more about their features below.
Sand Rescue Panel Features
1
Ultra-High Strength: Made from Fully Extruded 6061 T6 Aluminum.
2
Available in 5' lengths with an effective 16" width.
3
Stack in a compact configuration for easy transport.
4
Closed-sheeting system greatly reduces cofferdam/trench wall installation time.
5
Knuckles come in 8' sections. Panels and knuckles are reversible, so there is no upside down or backwards.
6
Engineered for working depths of 15'.
Trench Rescue Panel Features
1
Ultra-High Strength: Made from Fully Extruded 6061 T6 Aluminum.
2
Available in 5', 7' and 8' lengths with an effective 16" width.
3
Stack in a compact configuration for easy transport.
4
Closed-sheeting system greatly reduces cofferdam/trench wall installation time.
5
Knuckles come in 8' sections. Panels and knuckles are reversible, so there is no upside down or backwards.
6
Engineered for working depths of 20'.
Sand & Trench Panel Components

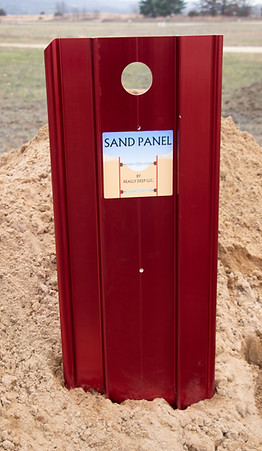

Sand Panel
The panels are made of fully extruded 6061 T6 aluminum and weigh 8 pounds per foot. Sand panels come in 5′ lengths. Engineered for working depths up to 15′

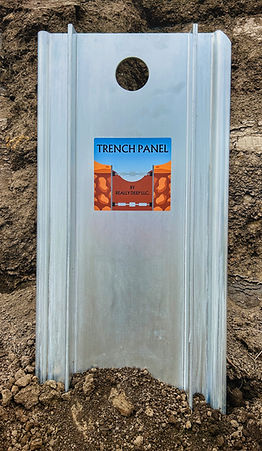

Trench Panel
The panels are made of fully extruded 6061 T6 aluminum and weigh 10 pounds per foot. We recommend lengths between 5′, 7′ and 8′. Engineered for working depths up to 20′
Knuckles
Make a 90-degree corner in the wall. Panels and knuckles are reversible, so there is no upside down and no backwards. They can also be used as a spacer to help maintain proper panel positioning.
5-Foot Handles
For easier insertion and retraction of panels.
Who Can Benefit From Using
Really Deep Sand & Trench Panels?
Emergency Response Teams
Lifeguard Services
Utility Companies
